Suzuki Swift sport (M-05)
Tamiya
58679{ product.vendor }
Regular price ₱7,500.00
The Hottest Hatch?

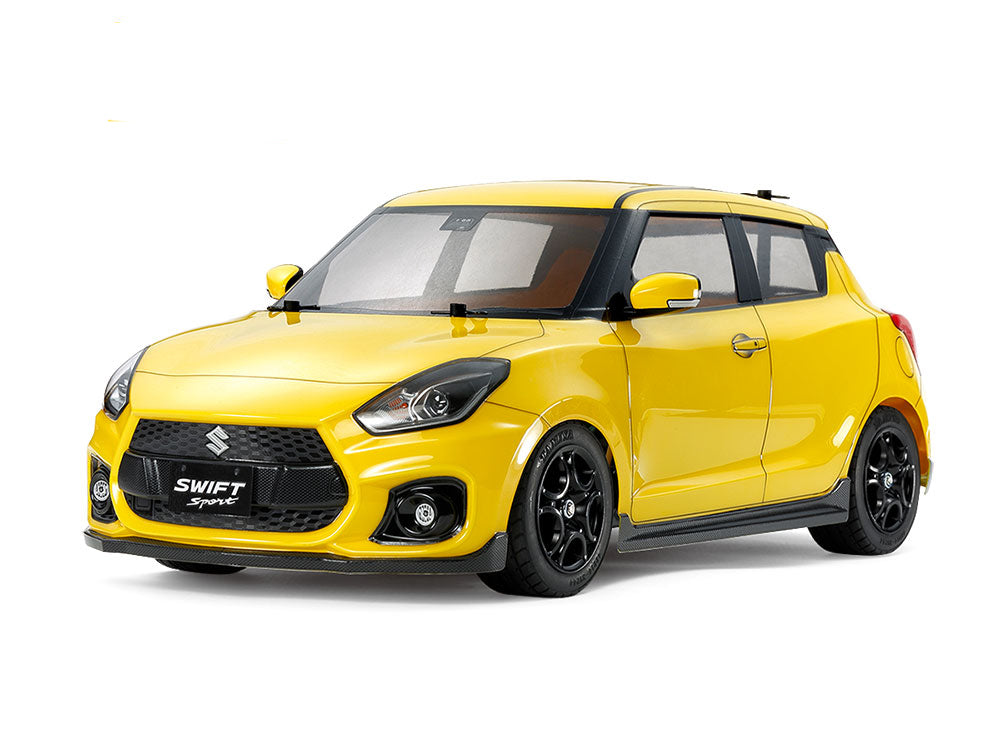

Suzuki's popular hot hatch underwent a model change in 2017, receiving a revamped body and a 140hp 1.4-liter turbocharged engine driving the front wheels. This R/C model assembly kit depicts that car, with a polycarbonate body to recreate the stylish Swift sport form. A full set of stickers is included to recreate details across the body, and the model is based upon the proven M-05 chassis.
 |
 |
 |
|
★Left: The muscular Swift sport body with twin exhausts is molded artfully in lightweight polycarbonate.
★Right: Polycarbonate light cases are separate parts, and provide a detailed accent at the front.
 |
|
 |
|
★Left: Separately molded side mirrors with integrated turn signals are dedicated parts for this model.
★Right: Black 5-spoke wheels are a perfect foil for the brightly colored body. Tires have inner sponges.
| M-05: Low Center of Gravity, High Performance! The front wheel drive M-05 chassis features a lightweight, narrow, durable, and easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack, receiver, servo and ESC are positioned for optimum weight distribution and a low center of gravity. Ground-hugging 4-wheel independent double wishbone suspension and the 3-piece steering linkage provide stable high-speed cornering. 5-spoke wheels are molded in black and have tires with realistic tread patterns and inner sponge. In this kit, the chassis is setup with the 239mm L wheelbase. |
 |
|
 |
|
★Left: A centerline steering servo is at the heart of the 3-piece steering tie-rod for superb response.
★Right: This image gives a closer look at the front double-wishbone suspension with friction dampers.
 |
|
 |
|
★Left: The kit includes a transponder stay component, which is a must for those who want to race.
★Right: The rear section can be re-configured for three different wheelbases (this model: 239mm).
| Specifications ★Length: 381mm, Width: 167mm, Height: 145mm ★Wheelbase: 239mm ★Tread (Front & Rear): 138mm ★Tire Width/Diameter (Front & Rear): 25/59mm ★Monocoque Frame ★3-Bevel Differential Gear ★Front-Wheel 2WD ★3-Piece Steering Tie-Rod ★4-Wheel Double Wishbone Suspension ★;Front & Rear Friction Dampers ★Gear Ratio = 5.8:1 ★Type 540 Motor ★Requires an Electronic Speed Controller (sold separately) |
