|A True Legend

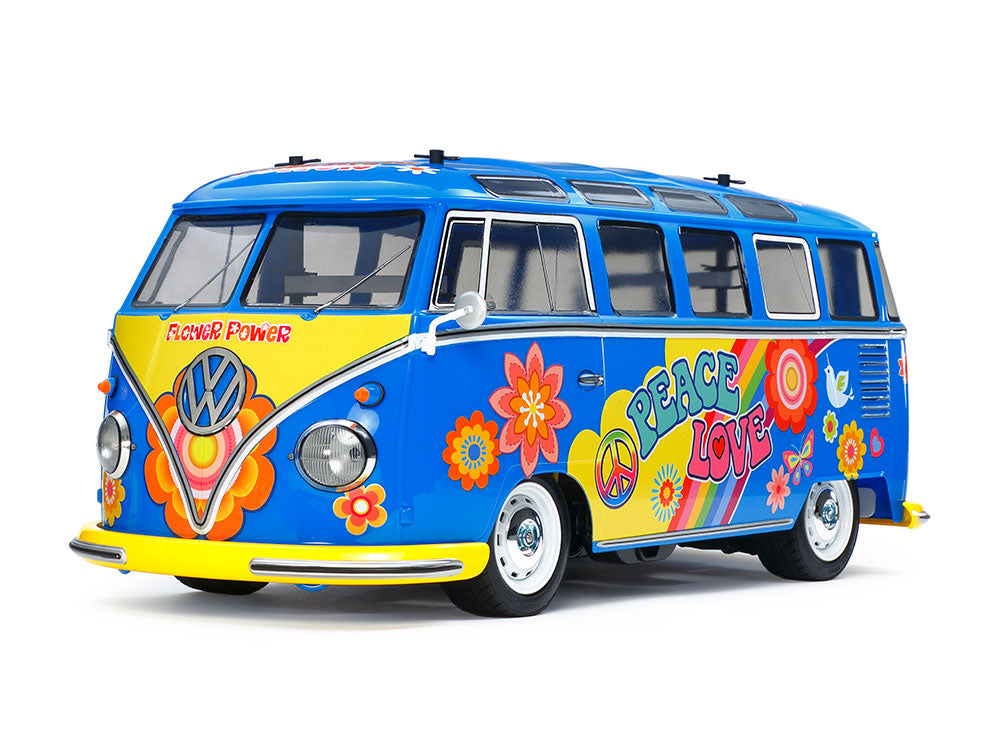

This R/C model assembly kit creates a special flower power version of the "23-window" type of the much-loved first generation (T1) Volkswagen Type 2, known as the Volkswagen Bus to many of its legions of fans, with an accurate polycarbonate body in detailed 1/10 scale. Stickers are included to apply the distinctive, hippy-inspired design motifs on the body, as well as window frames, emblem and more, while masking stickers are there to facilitate an easier paint job. Combined with classic style wheels and tread patterned tires, this stunning body is mounted on the rear-wheel drive M-06 chassis.
★Left: Install separately sold LEDs in the front and rear lights for super realism! Turn signals are separate parts.
★Right: Separate parts are also employed to depict the distinctive round side mirrors and their slimline stalks.
★Left: The rear of the model also shows off excellent attention to detail, including a separate bumper part.
★Right: Dish wheels feature gleaming plated components. Paint the rim sections with TS-26 Pure white to finish.
|M-05: Low Center of Gravity, High Performance!
The front wheel drive M-05 chassis features a lightweight, narrow, durable, and easy-assembly semi-monocoque resin frame. Gearbox, motor, battery pack, receiver, servo and ESC are positioned for optimum weight distribution and a low center of gravity. Ground-hugging 4-wheel independent double wishbone suspension and the 3-piece steering linkage provide stable high-speed cornering. Plated dish design wheels have tires with realistic tread patterns and inner sponge. In this kit, the chassis is setup with the 239mm L wheelbase.
★Left: A centerline steering servo is at the heart of the 3-piece steering tie-rod for superb response.
★Right: This image gives a closer look at the front double-wishbone suspension with friction dampers.
★Left: The kit includes a transponder stay component, which is a must for those who want to race.
★Right: The rear section can be re-configured for three different wheelbases (this model: 239mm).
★Length: 426mm, Width: 195mm, Height: 177mm ★Wheelbase: 239mm ★Tread (Front & Rear): 138mm ★Tire Width/Diameter (Front & Rear): 25/59mm ★Monocoque Frame ★3-Bevel Differential Gear ★Front-Wheel 2WD ★3-Piece Steering Tie-Rod ★4-Wheel Double Wishbone Suspension ★Front & Rear Friction Dampers ★Gear Ratio = 5.8:1 ★Type 540 Motor
