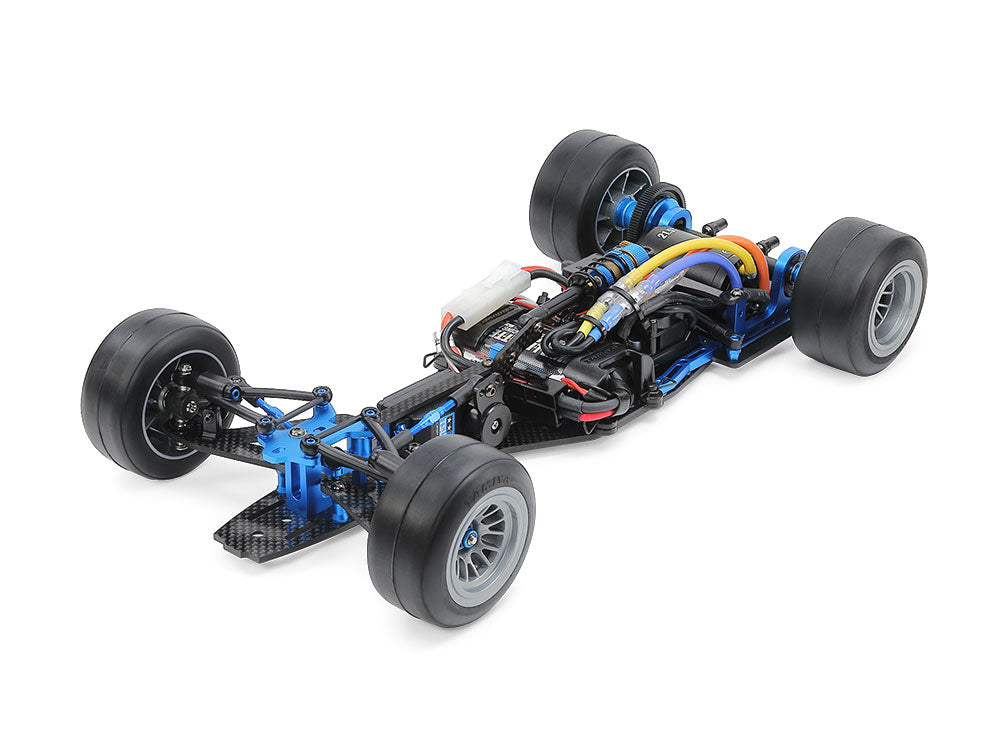

1/10 TRF104 Chassis Kit

This hi-spec 2WD formula chassis is built around a 2.5mm thick carbon fiber lower deck and takes an LF battery pack (M-Size) in the center. Front suspension features 2.5mm thick carbon fiber lower arms and plastic upper arms, and camber angle is adjustable. Rear suspension has ball connectors equipped on the motor mount and the roll center is based around the rear suspension. The model centering is controlled by roll springs under the rear shaft, and friction grease on roll dampers at motor mount front allows adjustment of roll speed. The pitching is controlled by an FRP suspension plate and a TRF damper. The motor mount has parts for adjustment of ground clearance and wheelbase. Choose from two rear wing attachment methods.

Featured Components
●2.5mm carbon fiber lower deck ●2.0mm front stiffener stay ●2.5mm carbon fiber front lower arms ●2.25mm carbon fiber upper brace ●2.25mm carbon fiber damper stays ●Aluminum upper arm mounts ●2.0mm carbon fiber roll spring mount ●2.0mm carbon fiber bulkplate ●Aluminum front bulkhead ●Aluminum center bulkhead ●Aluminum steering arms ●Aluminum ackerman plate ●Aluminum suspension brackets ●Aluminum motor mount ●Aluminum rear stiffeners ●Carbon fiber rear shaft ●FRP suspension plate ●TRF damper (HL cylinder, titanium coated shaft) ●Left/right roll dampers ●Aluminum motor plate ●Aluminum servo stay ●Aluminum diff housing ●Aluminum clamp type wheel hubs ●Aluminum turnbuckle shafts ●Hi-torque servo saver ●04 module pinion gear (24T) ●Rubber sealed ball bearings

Specifications
●Length: 324mm (without wings) ●Width: 181mm ●Wheelbase: 267mm/264.5mm ●Carbon fiber double deck frame ●Rear direct drive 2WD ●Ball differential ●2-piece steering tie-rod ●Front kingpin coil sprung independent suspension (3 caster settings and adjustable camber) ●Rear pivot ball suspension ●TRF damper & 2x roll dampers ●Gear ratio = 4.00:1 (with kit 96T spur and 24T pinion) ●Motor sold separately ●Contact your local Tamiya Agent regarding the ESC.

Separately Required Items
●Body ●Front/rear wings ●Wheels ●Tires ●Brushless motor ●2-channel R/C system w/ESC ●R6/AA/UM3 batteries for transmitter ●Battery pack & charger
